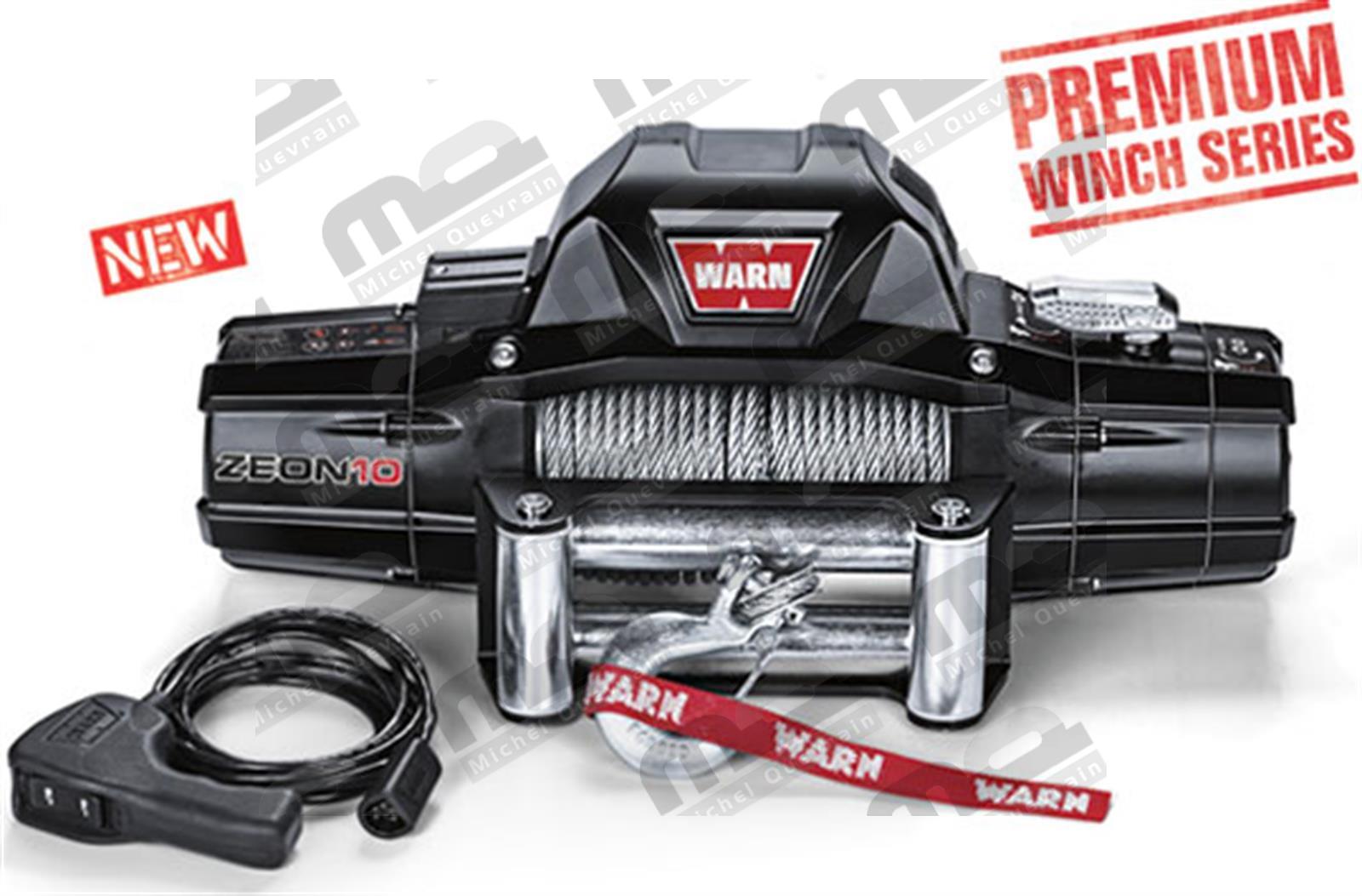

Treuil Warn Zeon 10 4,5T

Beschrijving



Part number: 88990 (12V)

Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: series wound, 12V DC
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone

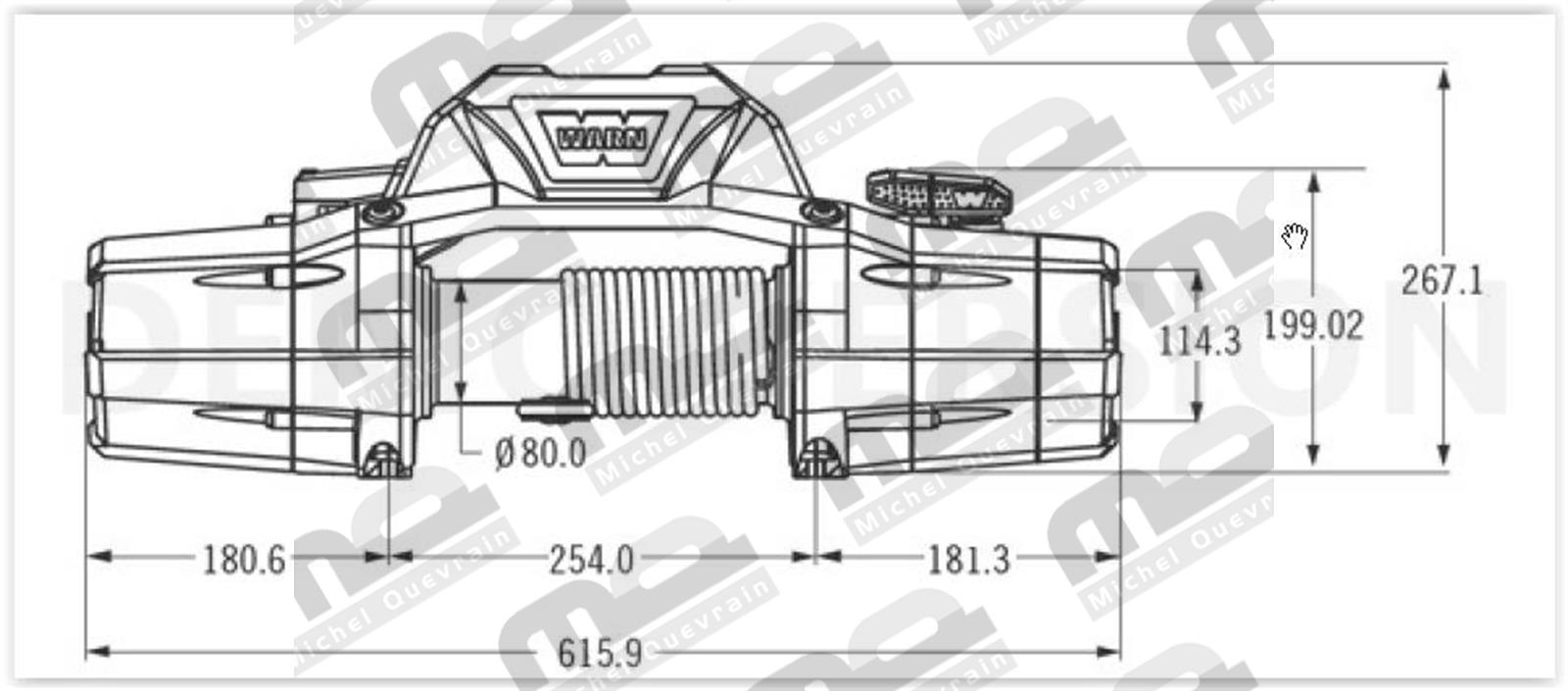

Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8" x 80' (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime



12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 33 (10.27) 62 amps 1/10000 (4536)
2000 (910) 14.9 (4.5) 144 amps 2/8245 (3740)
4000 (1810) 11.2 (3.4) 215 amps 3/7014 (3181)
6000 (2720) 8.5 (2.6) 380 amps 4/6103 (2768)
8000 (3630) 6.5 (2.0) 353 amps
10000 (4536) 4.8 (1.5) 409 amps
