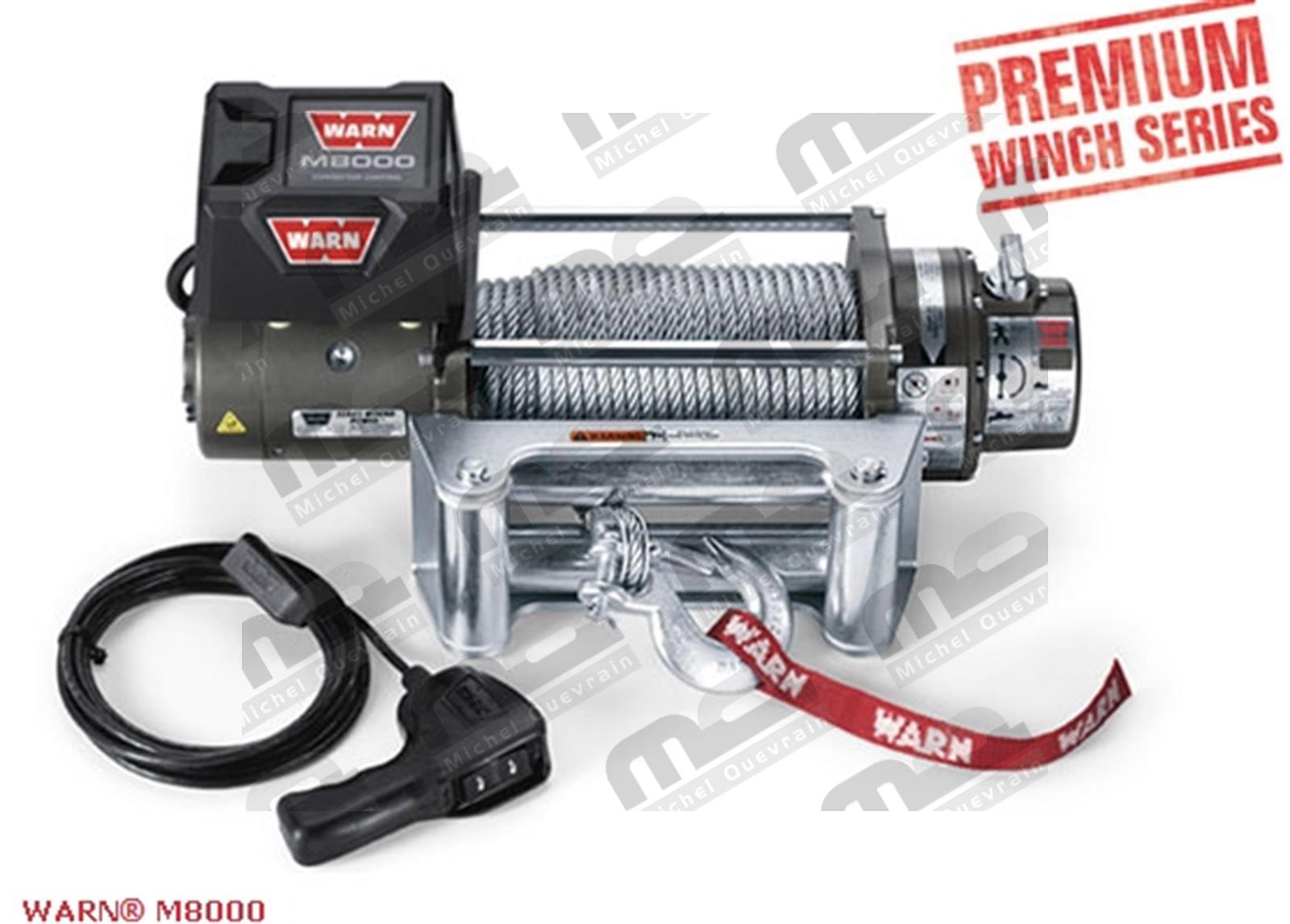

Treuil Warn M8000 12 V. 3,6T.


Description

M8000 SPECS/PART NUMBERS
Winch model: M8000
Part number: 26502 (wire rope, 12V)
Part Number: 88502 (wire rope, 12V, CE, International sales only)
Part Number: 265032 (wire rope, 24V)
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp, 24V 2.1 hp,
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel -- 100', 5/16" diam. (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 30.2 (9.20) 80 amps 1/8000 (3629)
2000 (910) 14.2 (4.33) 200 amps 2/7280 (3302)
4000 (1810) 9.9 (3.02) 285 amps 3/6670 (3026)
6000 (2720) 7.3 (2.22) 350 amps 4/6230 (2826)
8000 (3630) 4.8 (1.46) 435 amps

















Caractéristiques

Marque Compatible toutes marques
Modèle TOUS MODELES
Treuil Warn M8000 12 V. 3,6T. ; traction de 3.600 kgs
